Diaceros has a computer numerical control milling machine for the manufacture of molds for foundry. It is a CNC milling machine with three axes with 7.5 kW of power that allows to manufacture molds of dimensions up to 2.80x1.10x0.32 m.

It is possible to work with various materials such as woods and various polymeric materials used in foundry molds.

This machine resulted from a technological development project in collaboration with LINE - Laboratory of Industrial and Business Innovation (Polytechnic Institute of Tomar), whereby the geometry of the machine has been developed specifically for automatic production of molds for casting, which allows, for example, a loading and attachment of the simplest material block.

In the scope of the same project, specific CAD / CAM training was given to the company's employees in order to maximize the potential of this equipment, giving it the highest possible productivity.

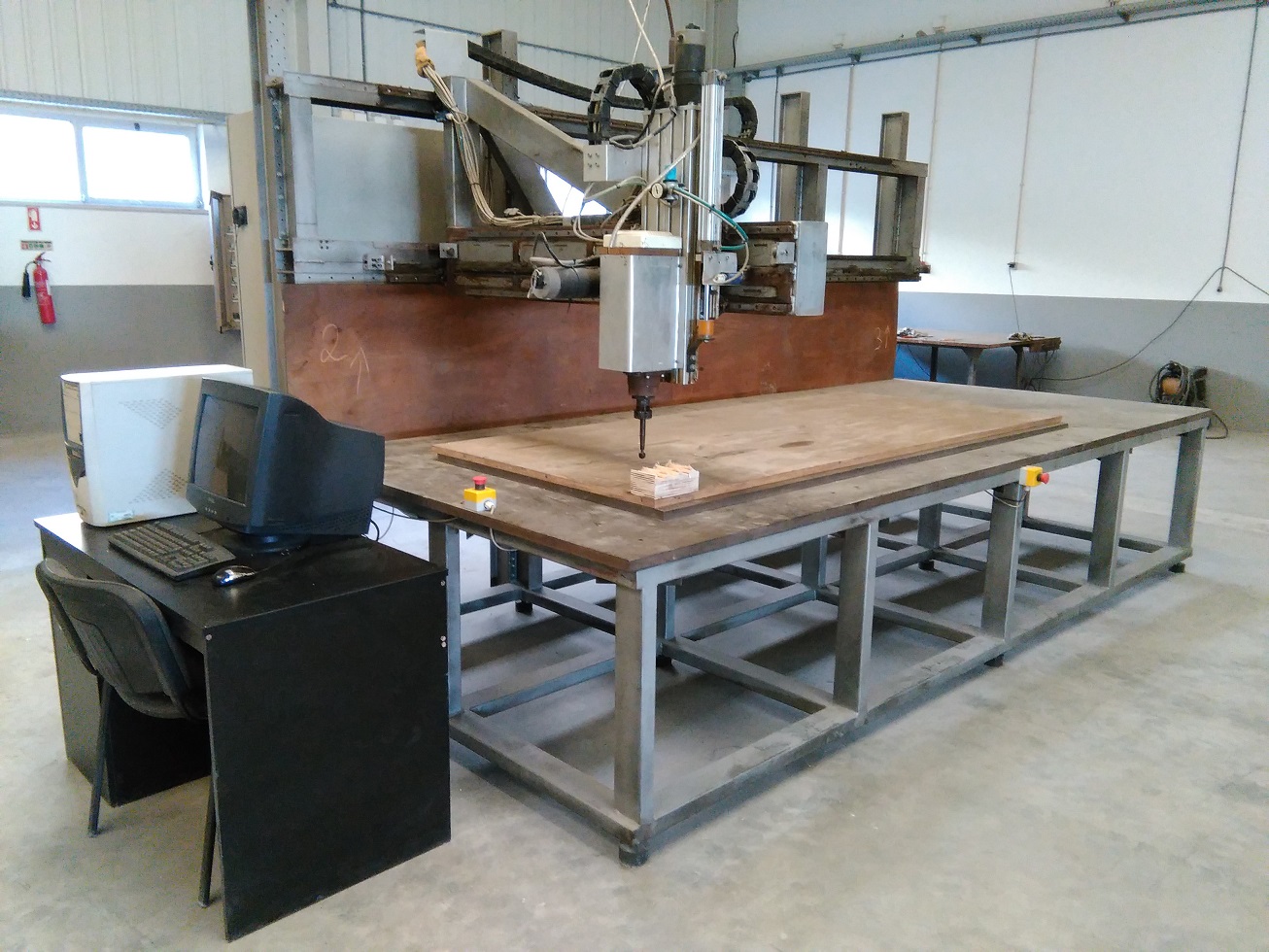

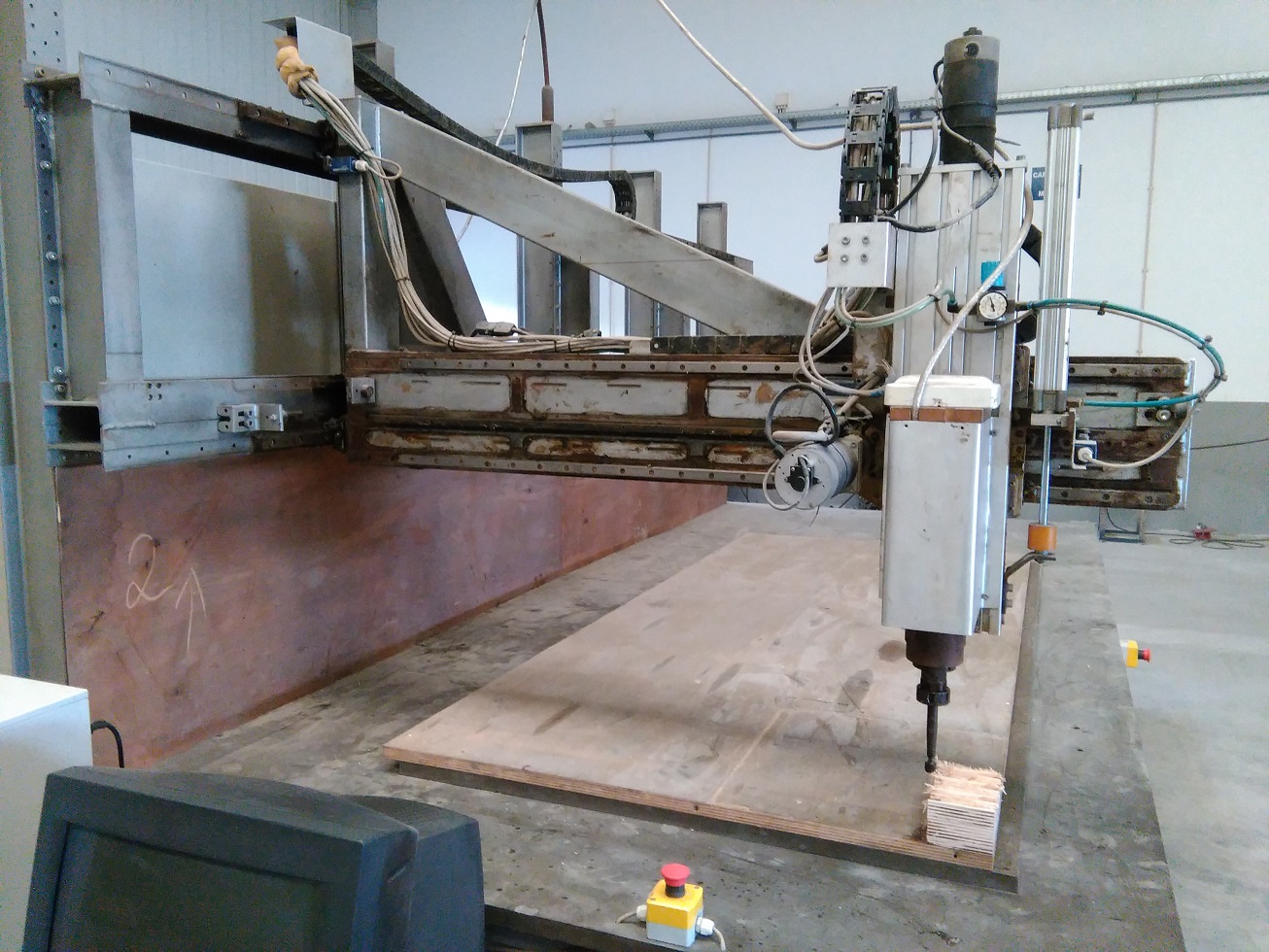

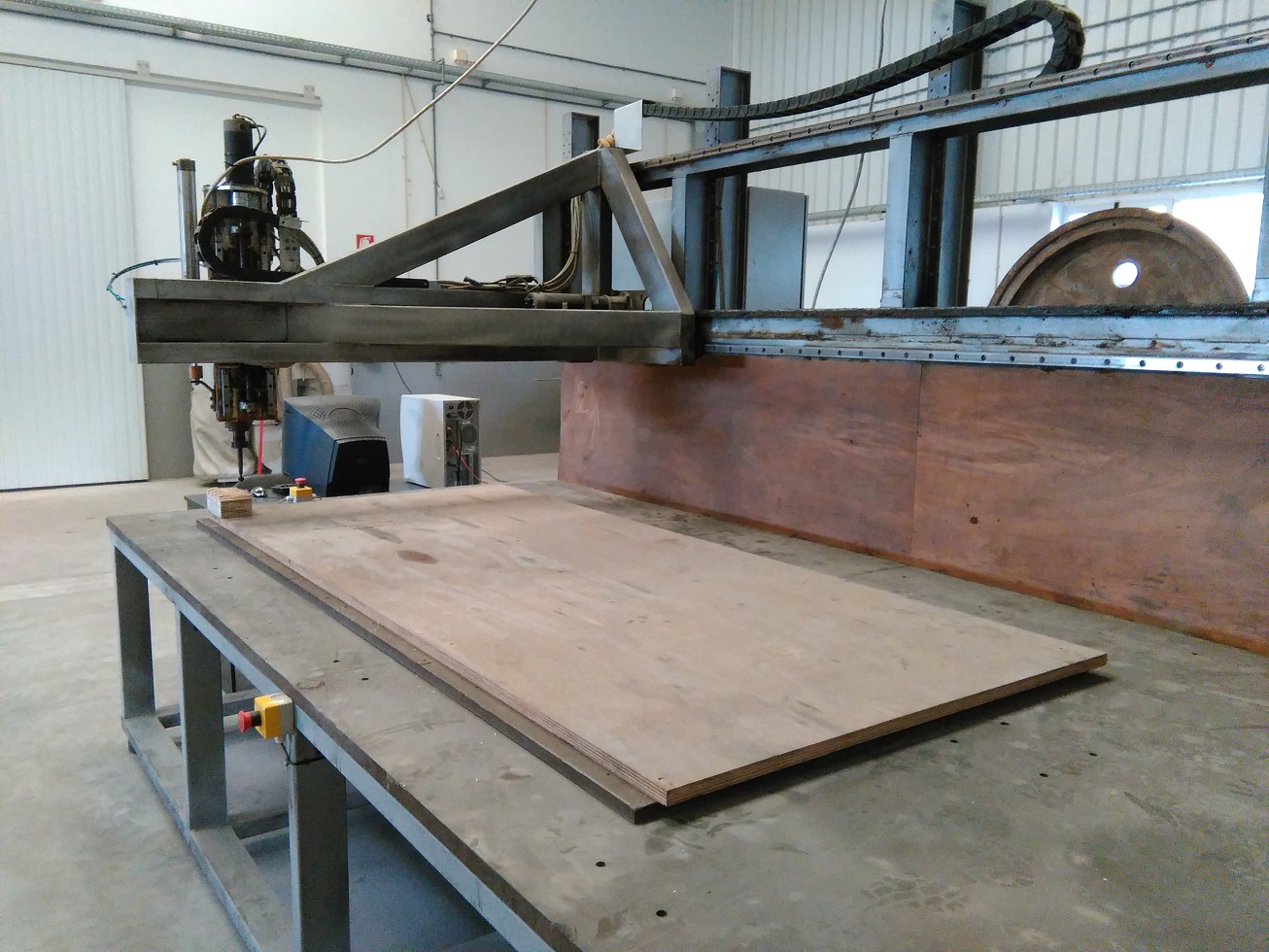

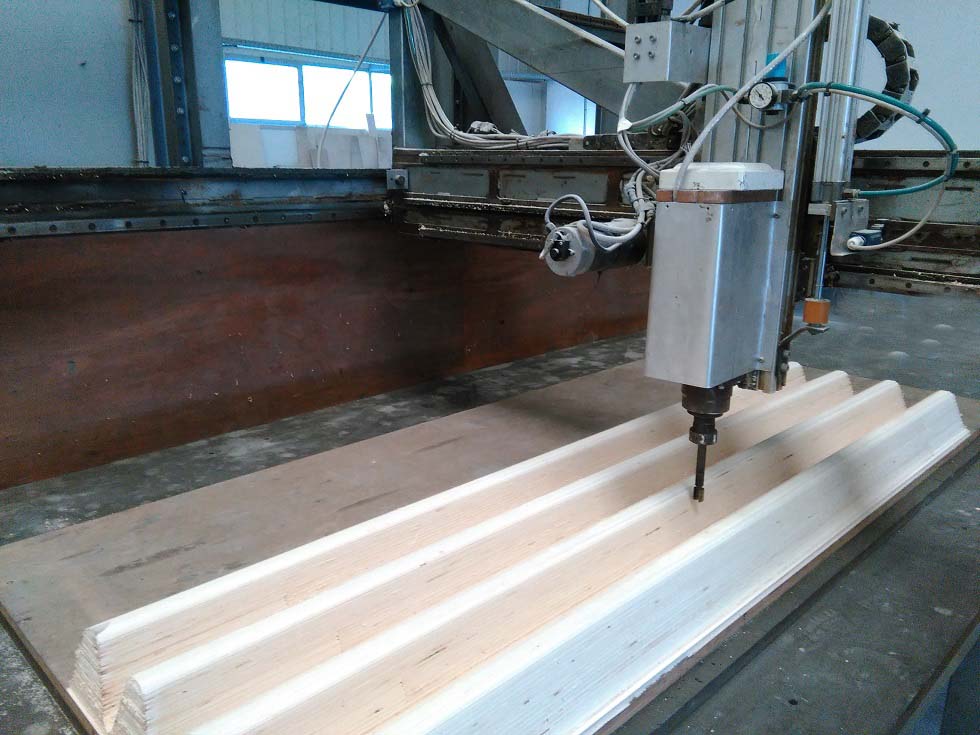

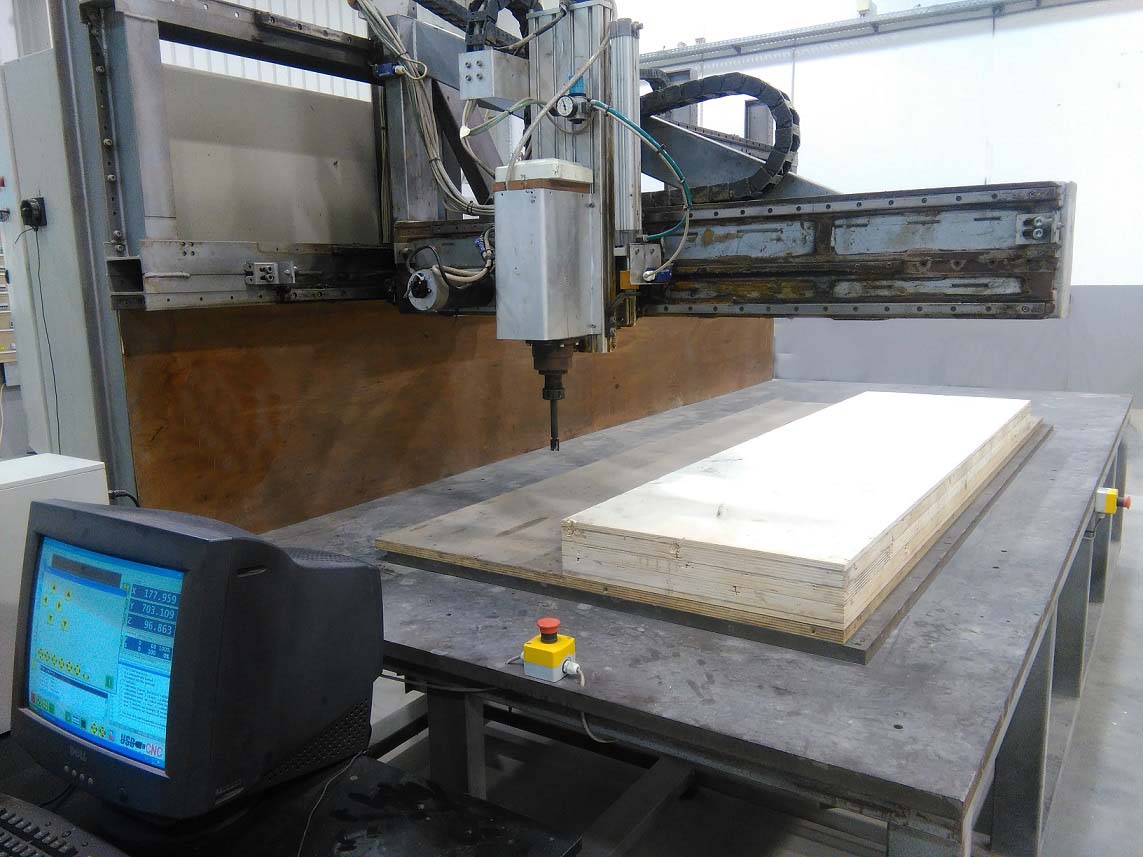

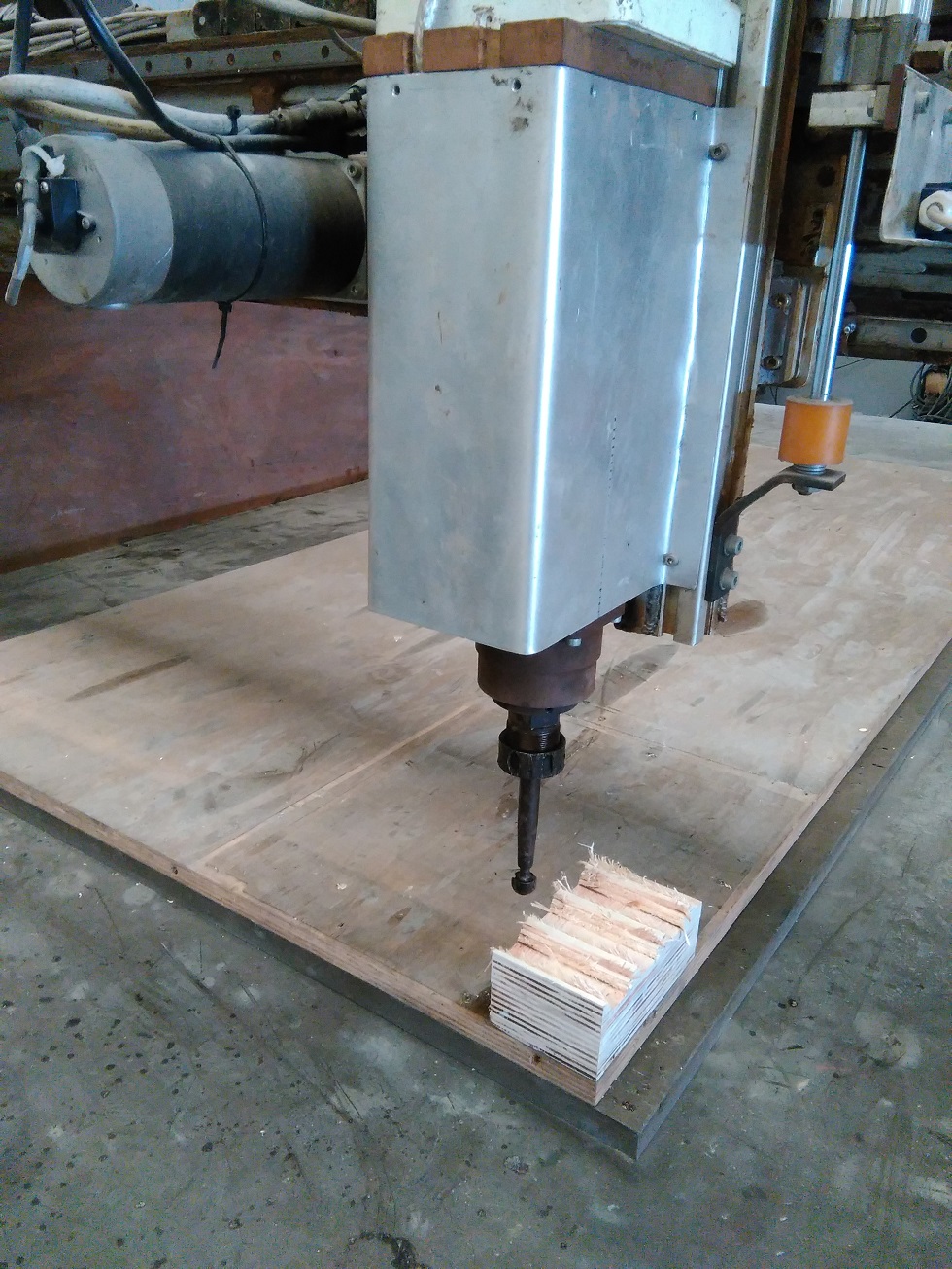

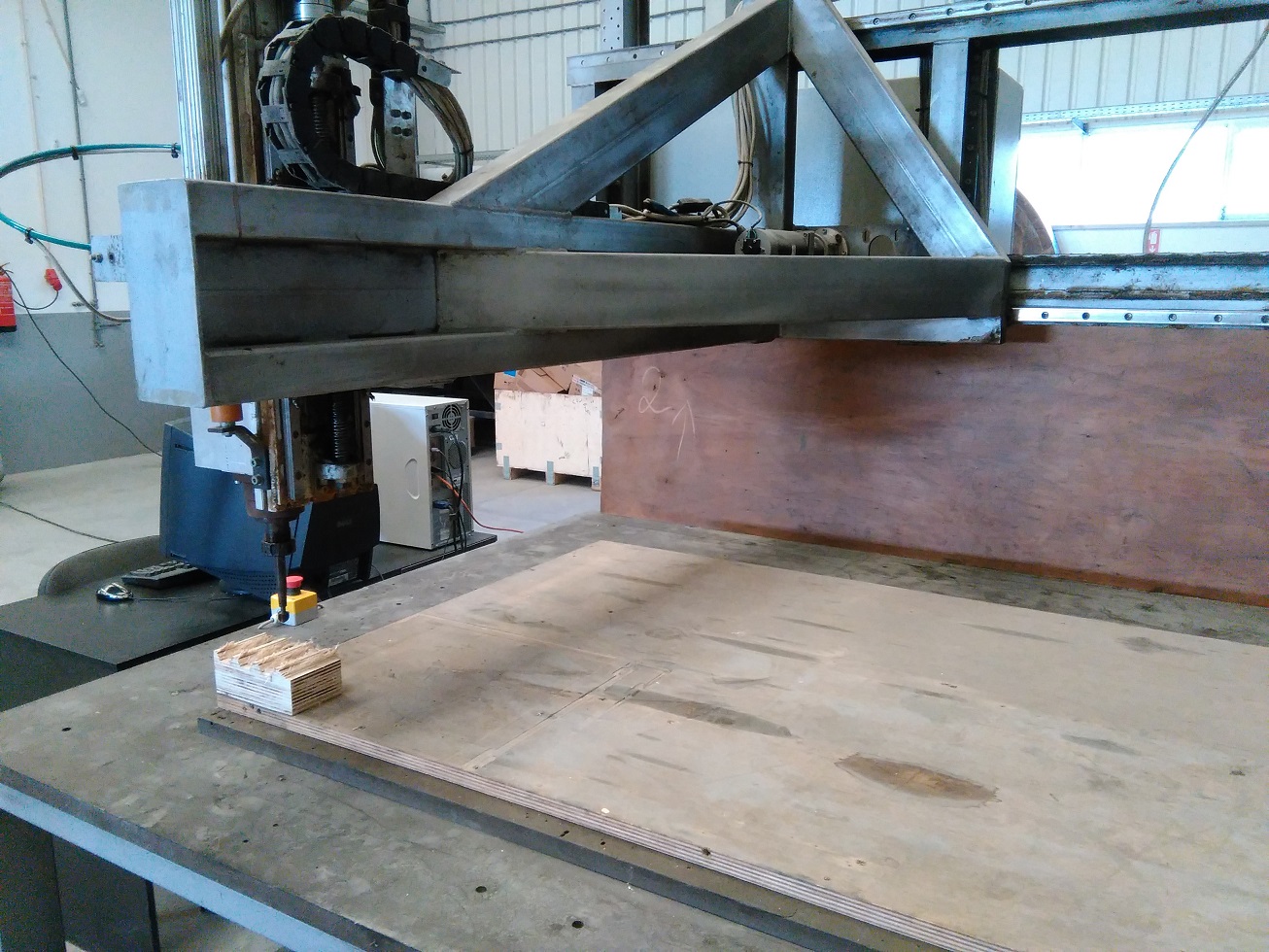

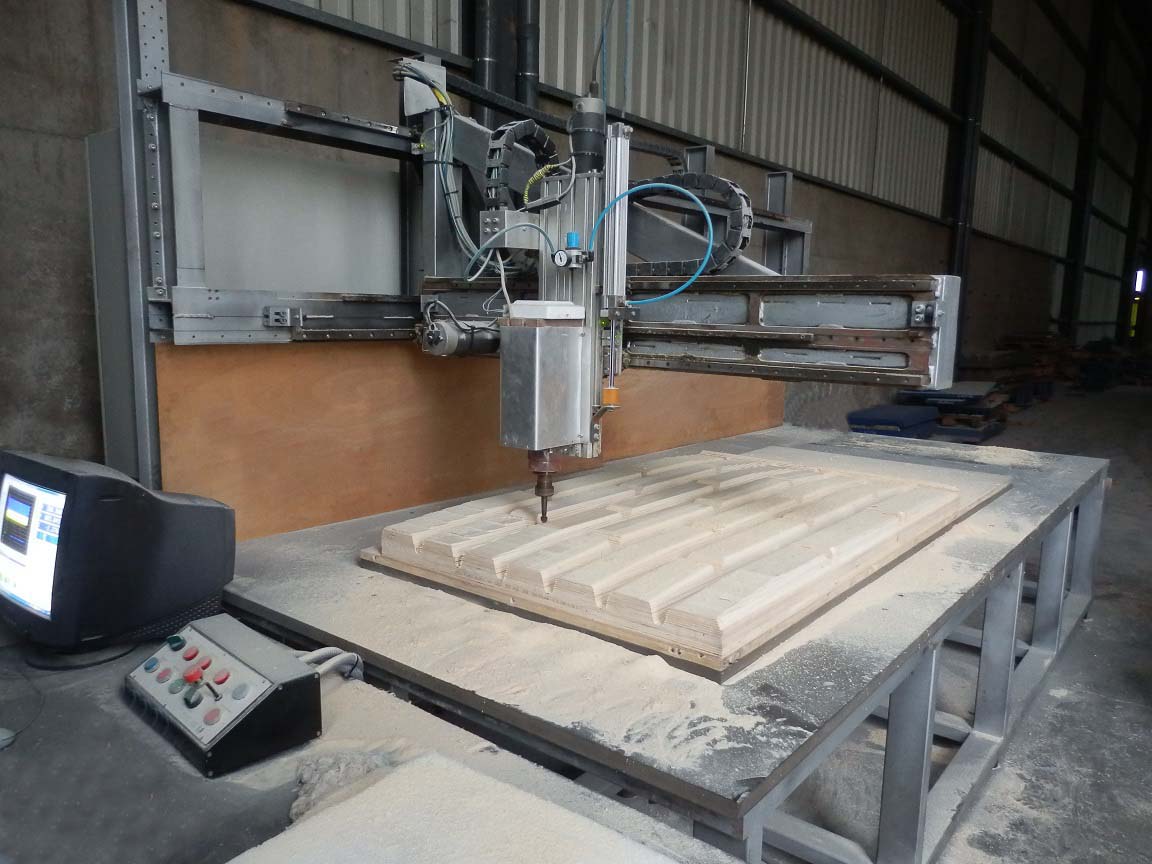

CNC milling machine
a a a a a
a

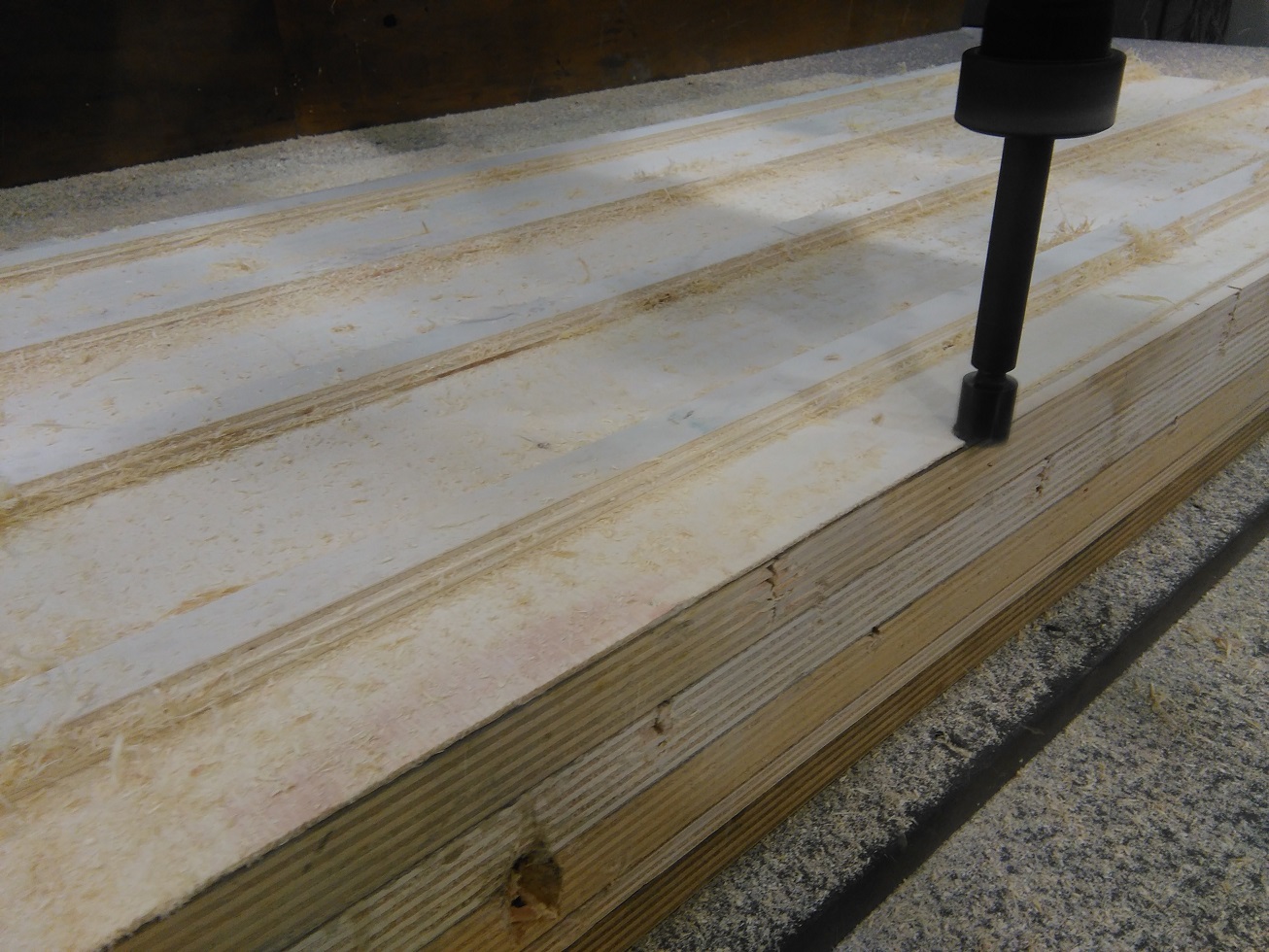

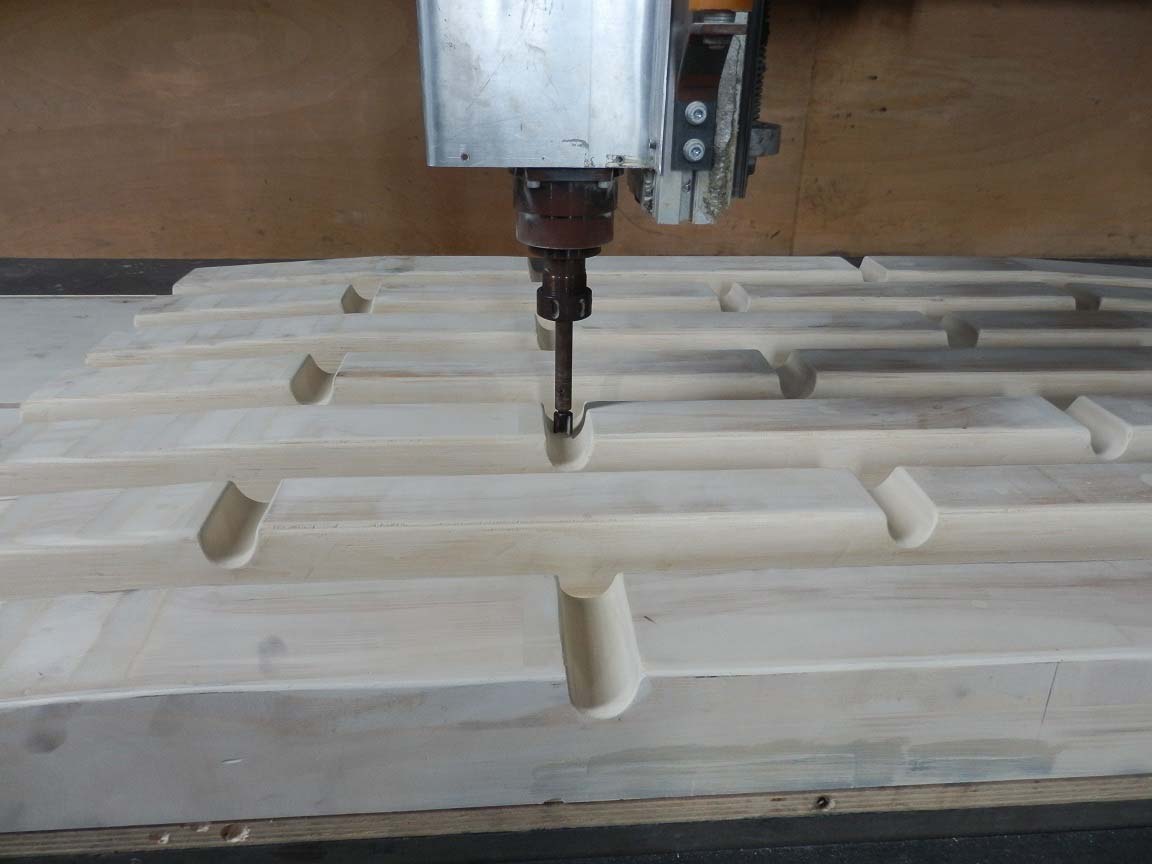

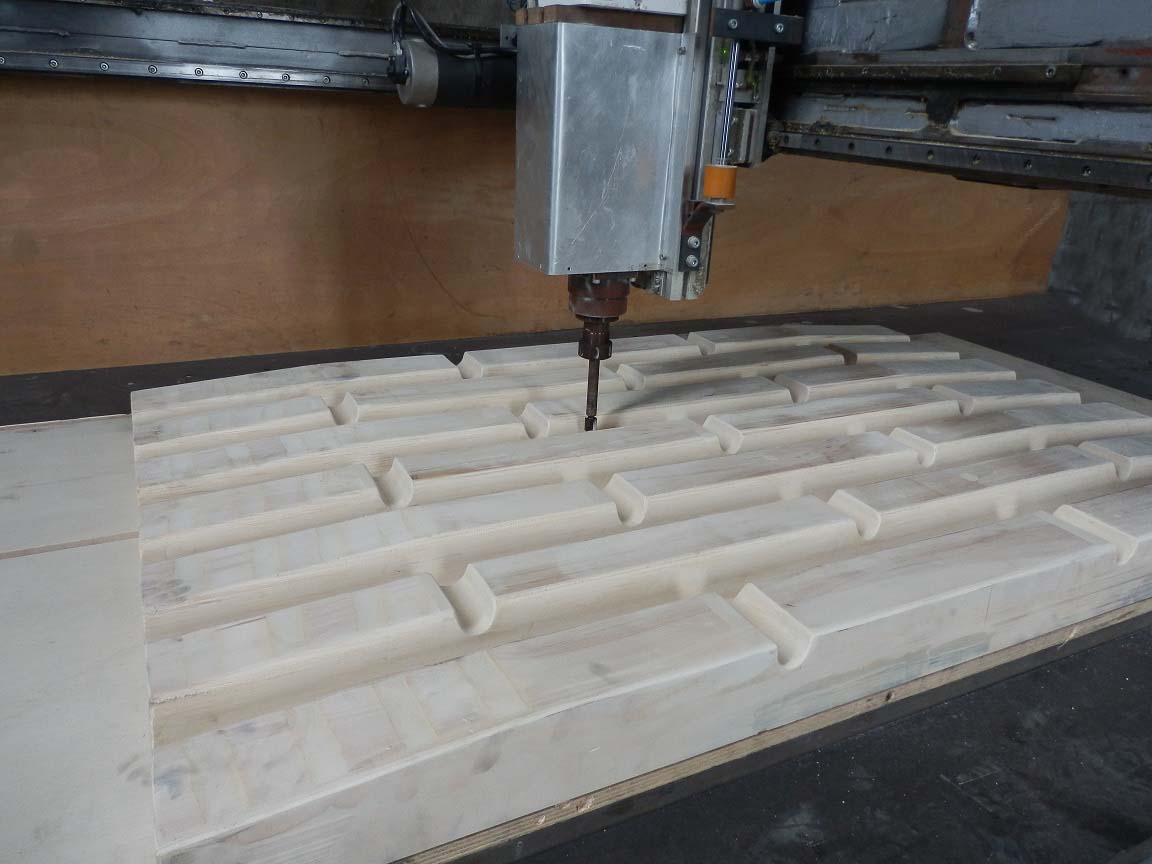

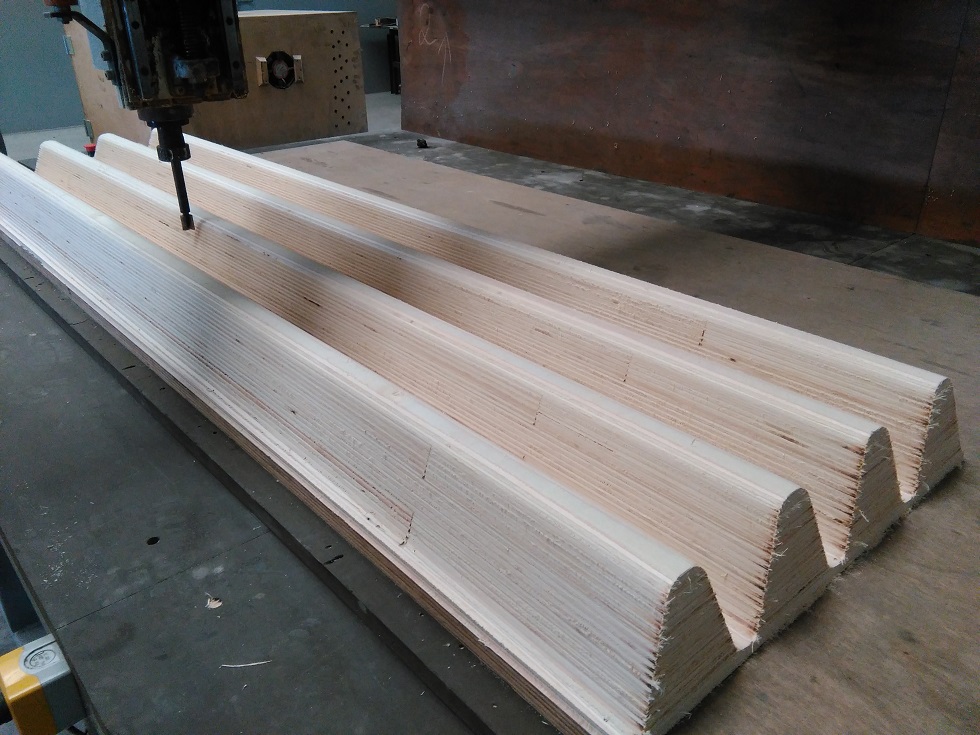

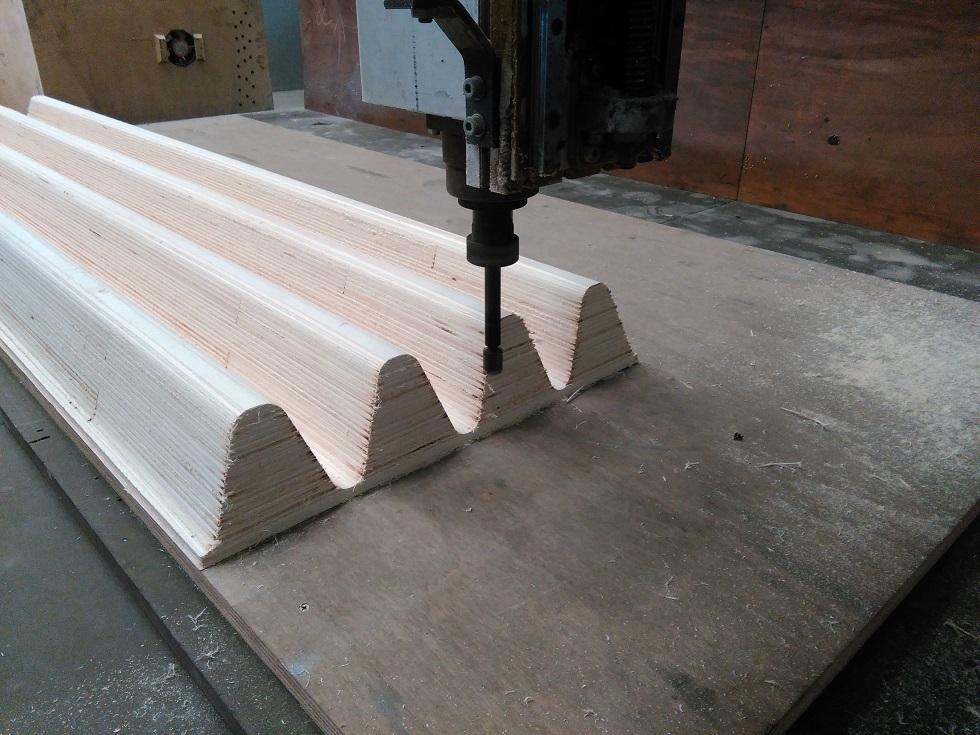

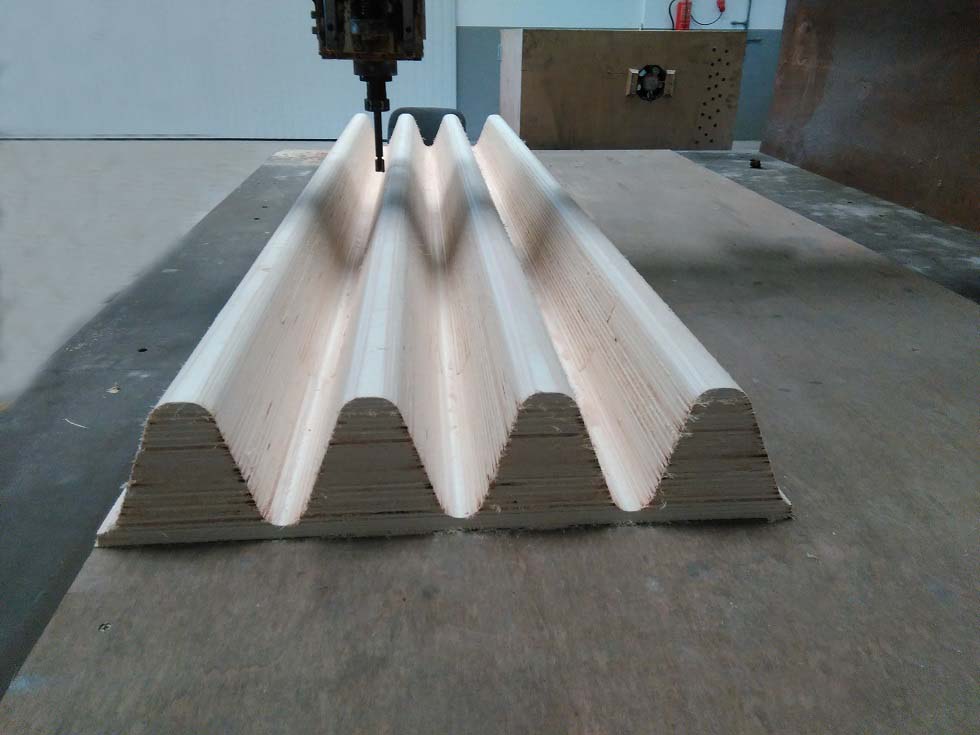

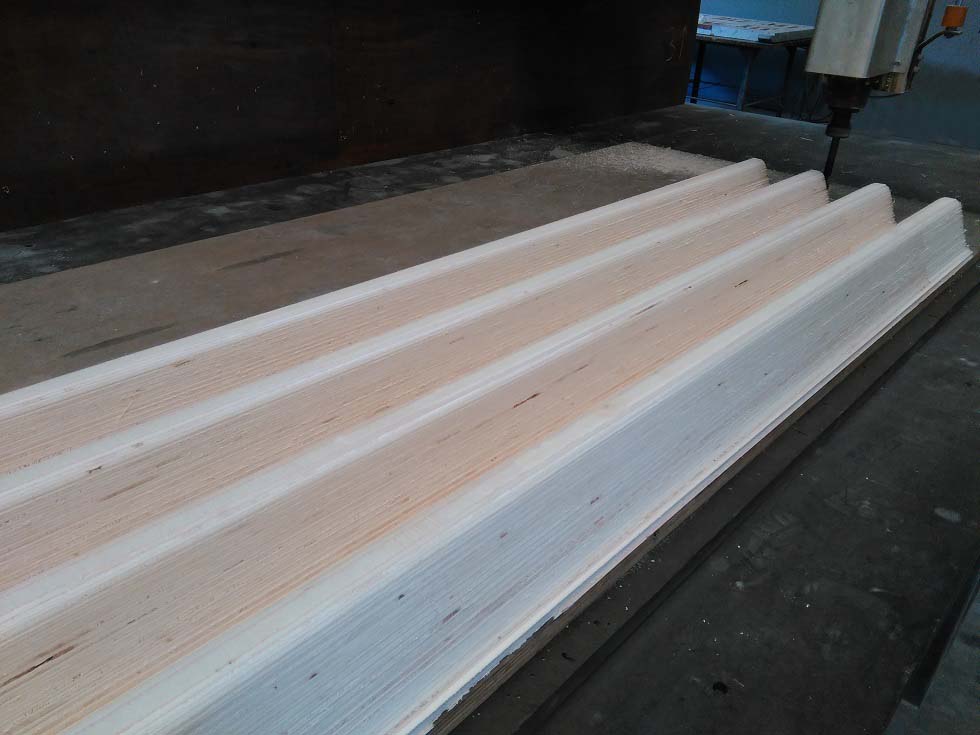

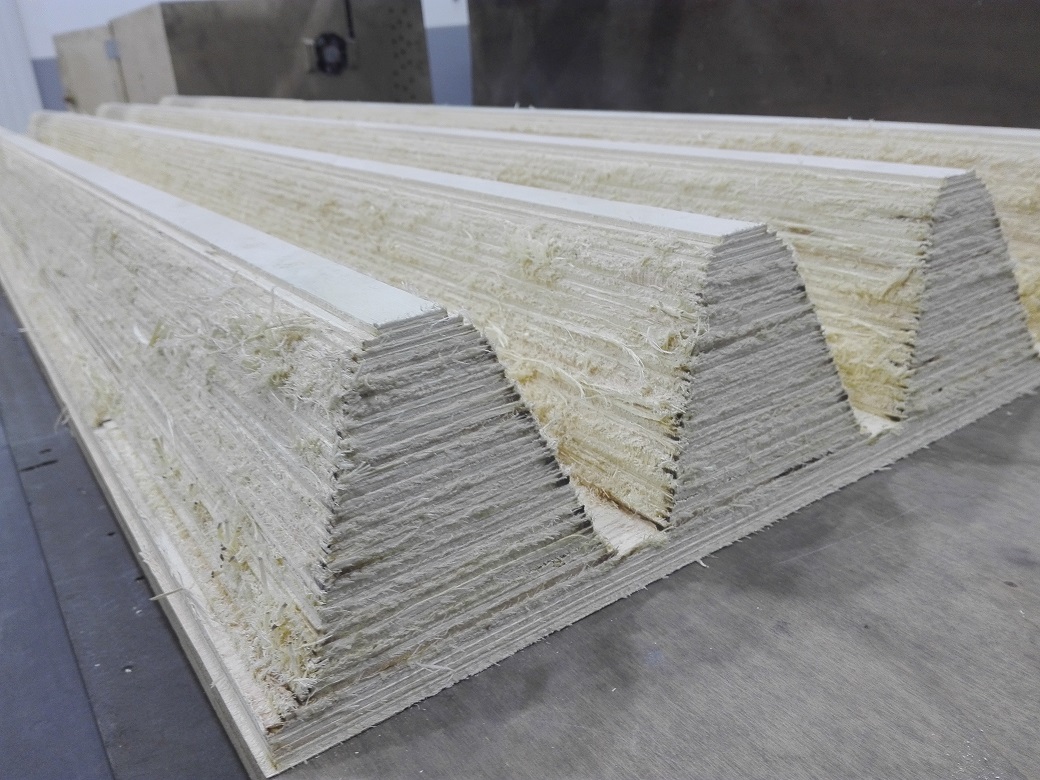

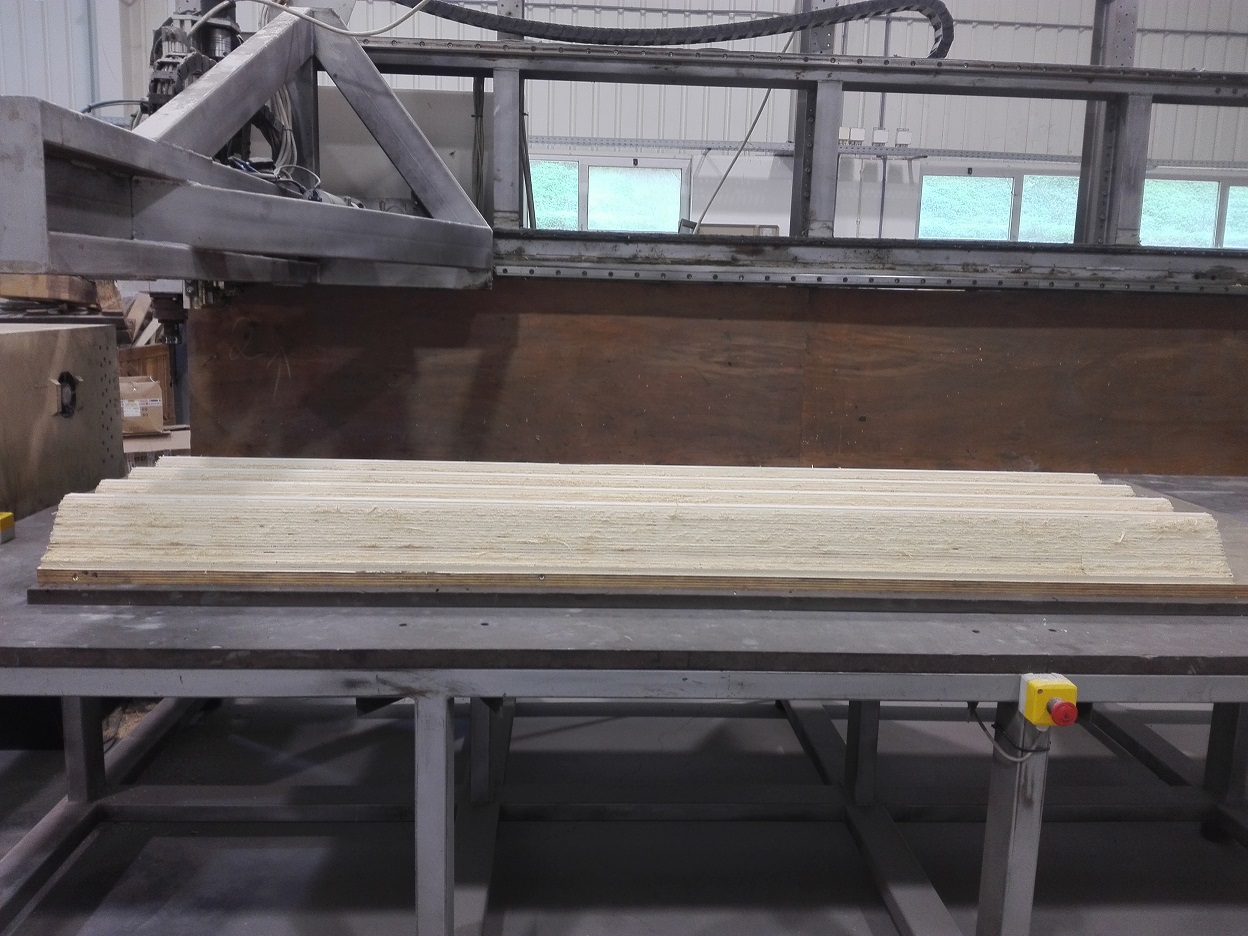

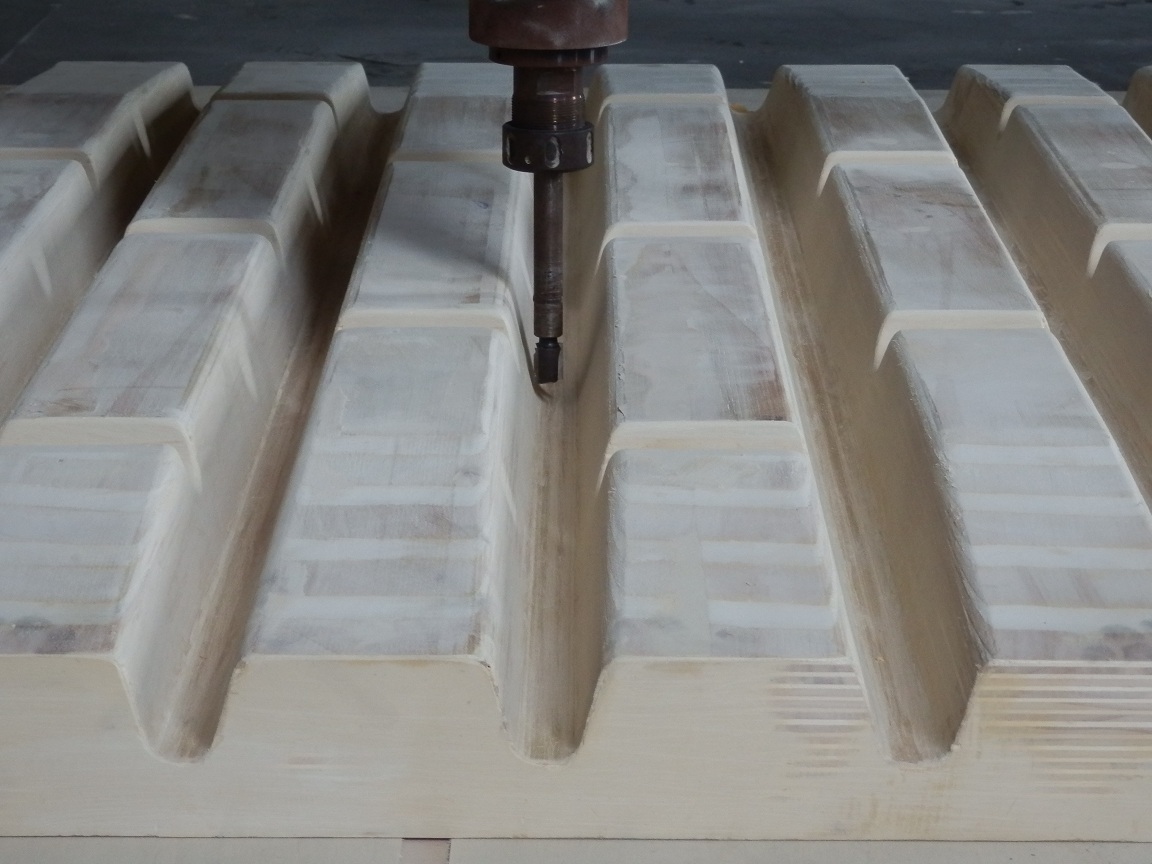

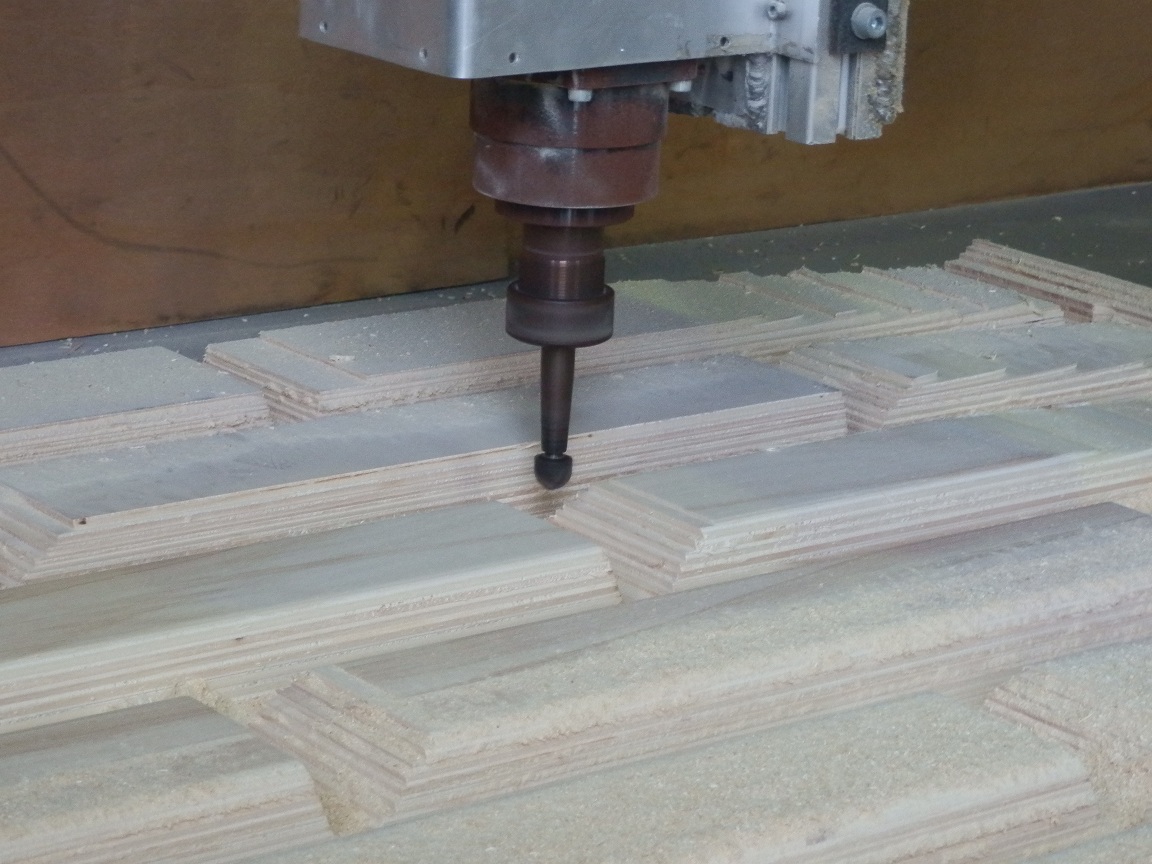

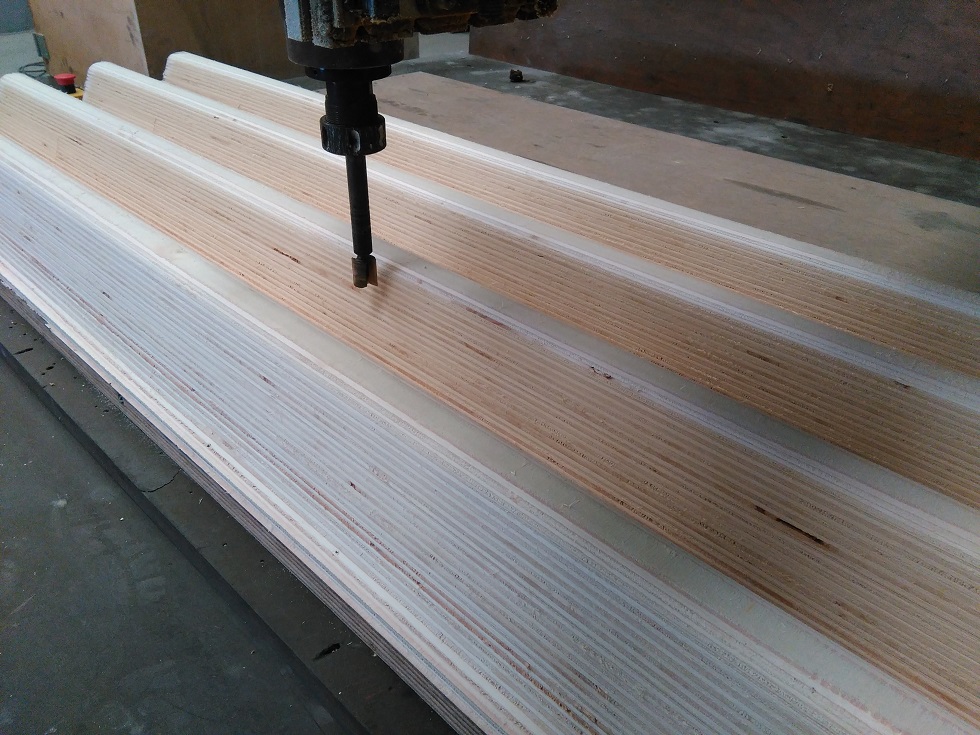

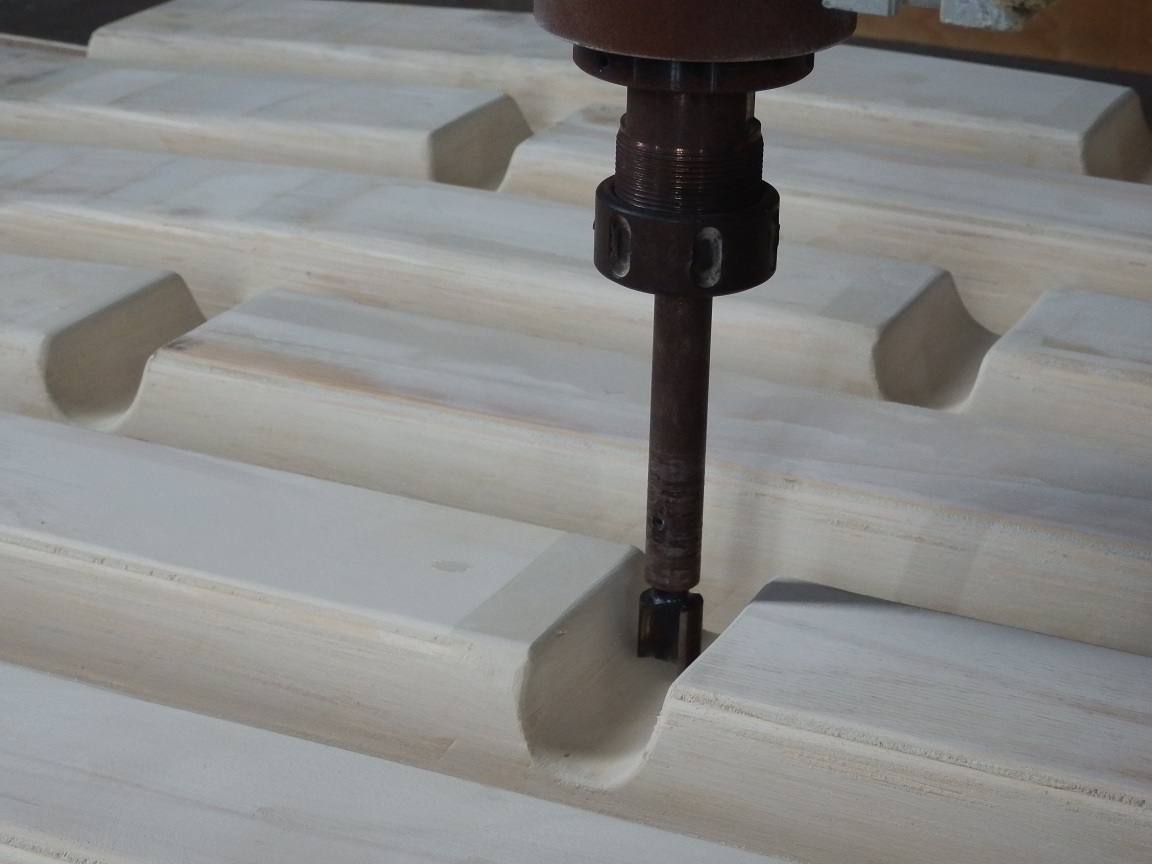

Mold manufacturing process
a a a
a aaaaaaa a




a

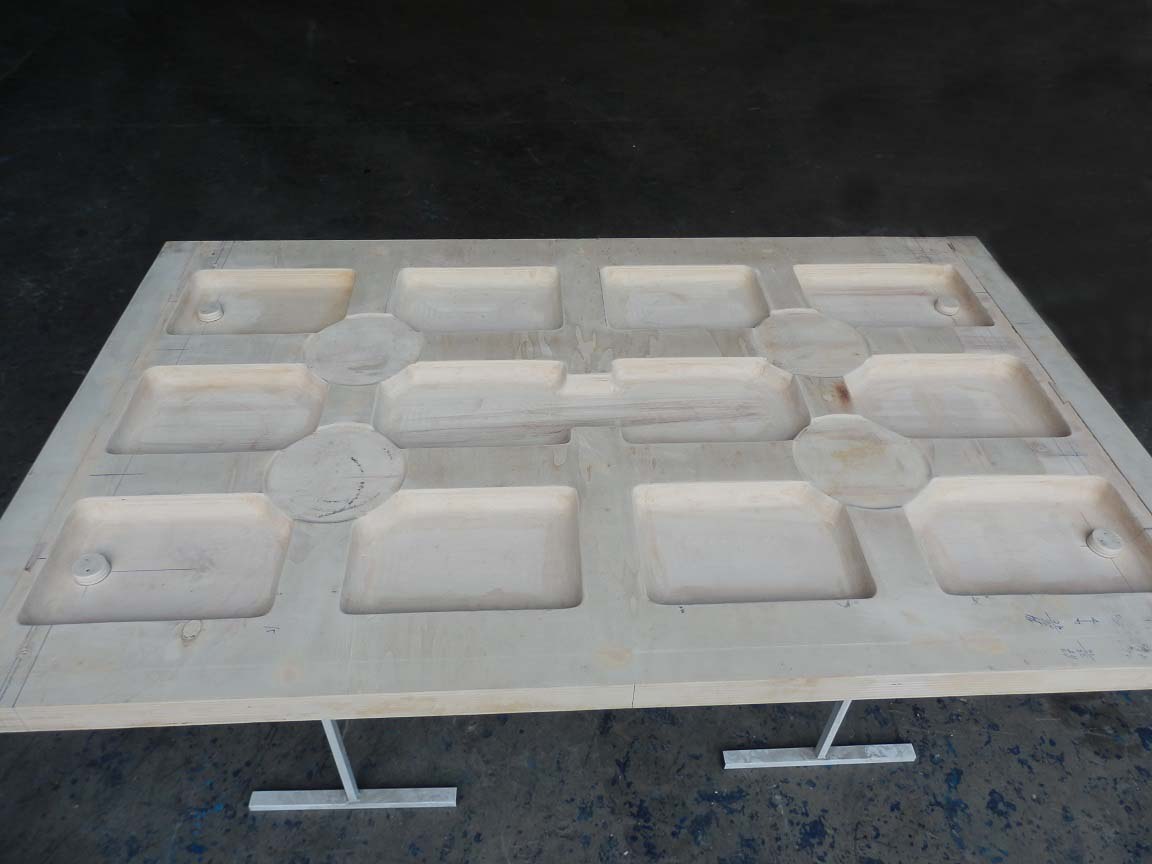

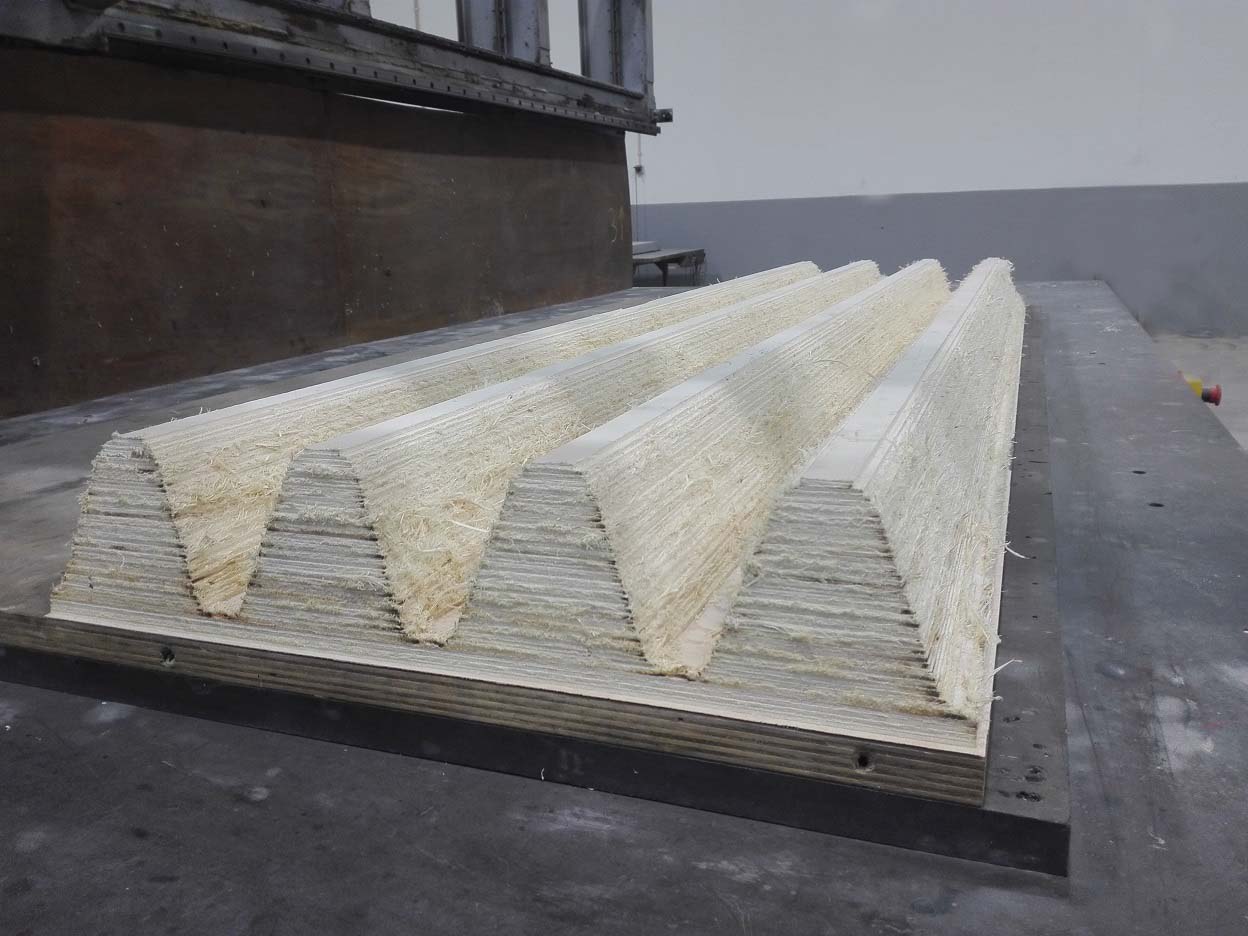

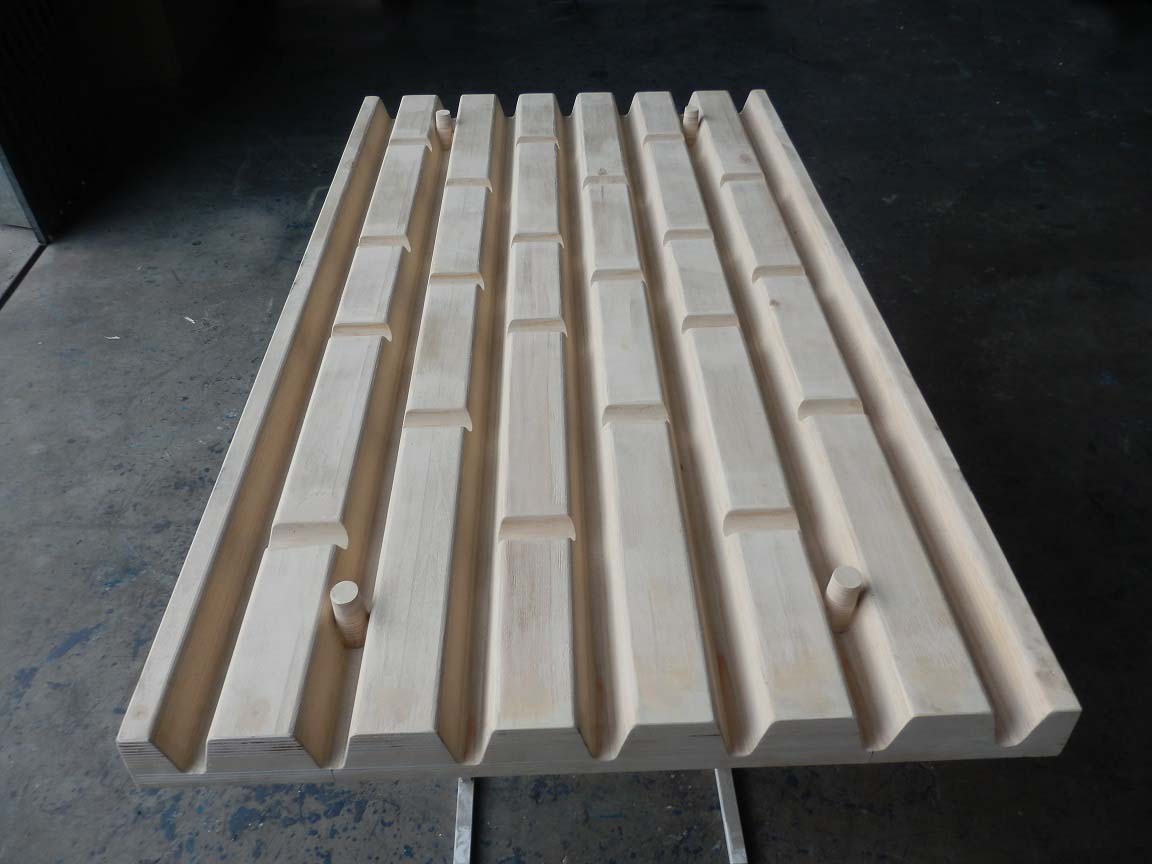

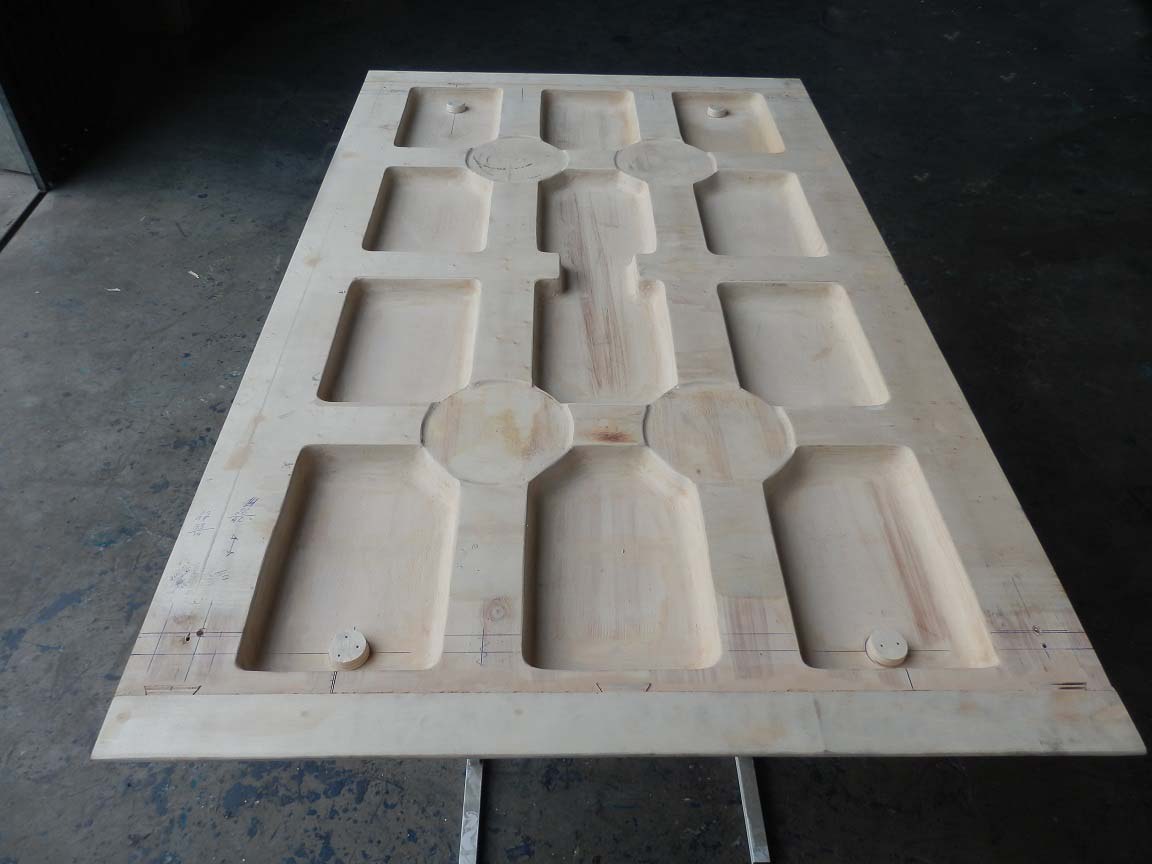

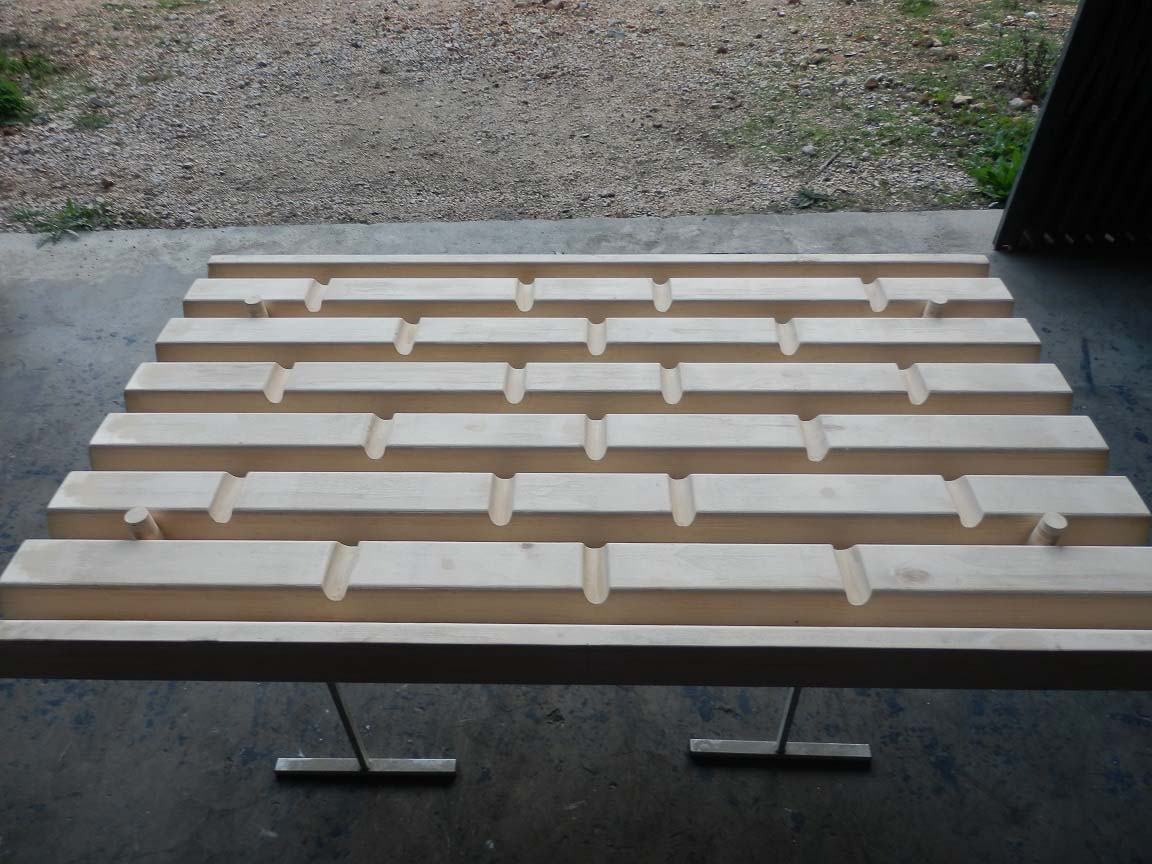

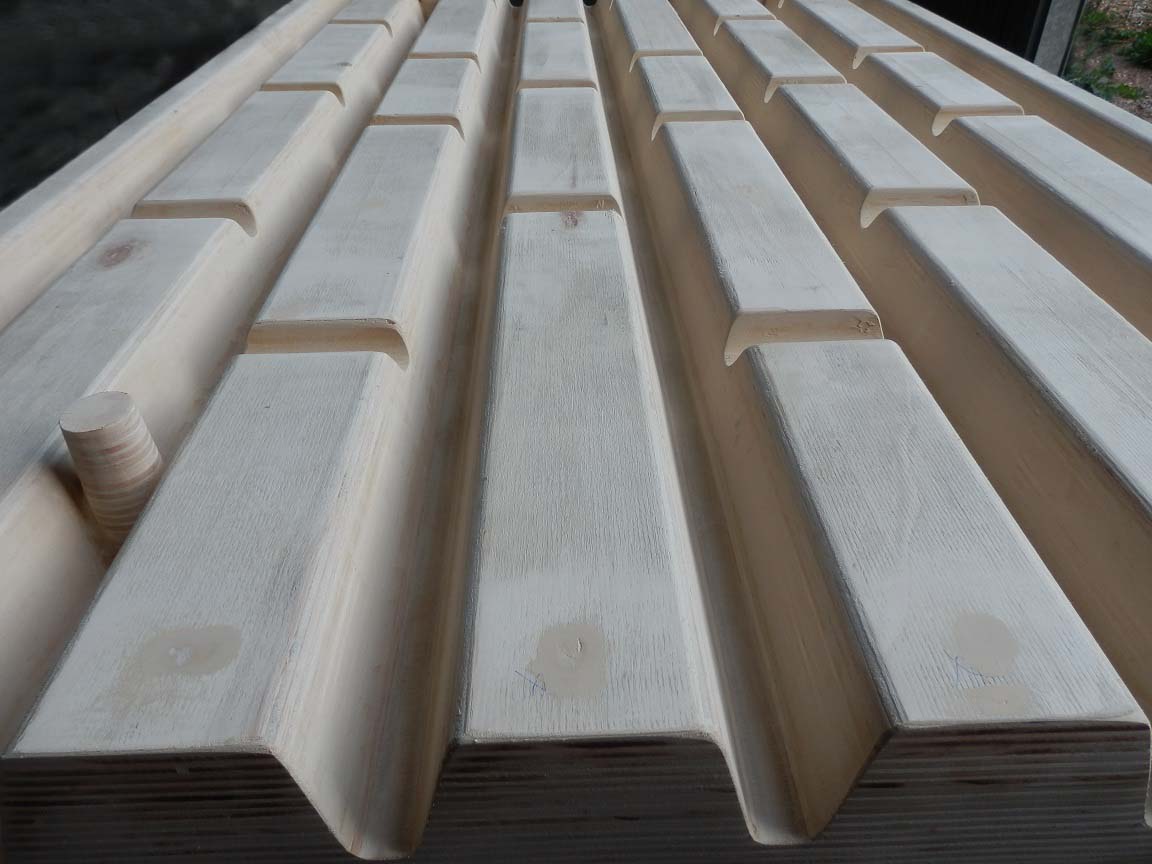

Mold
a a a a a
a

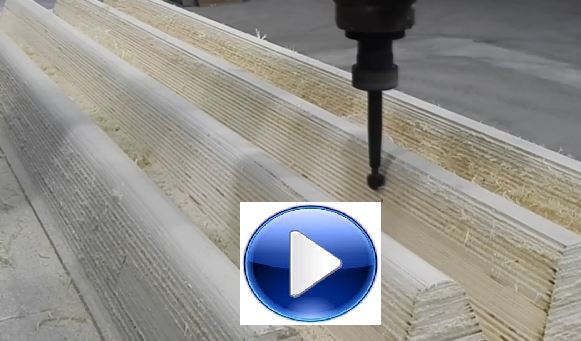

Videos (click the image below to see the video)
